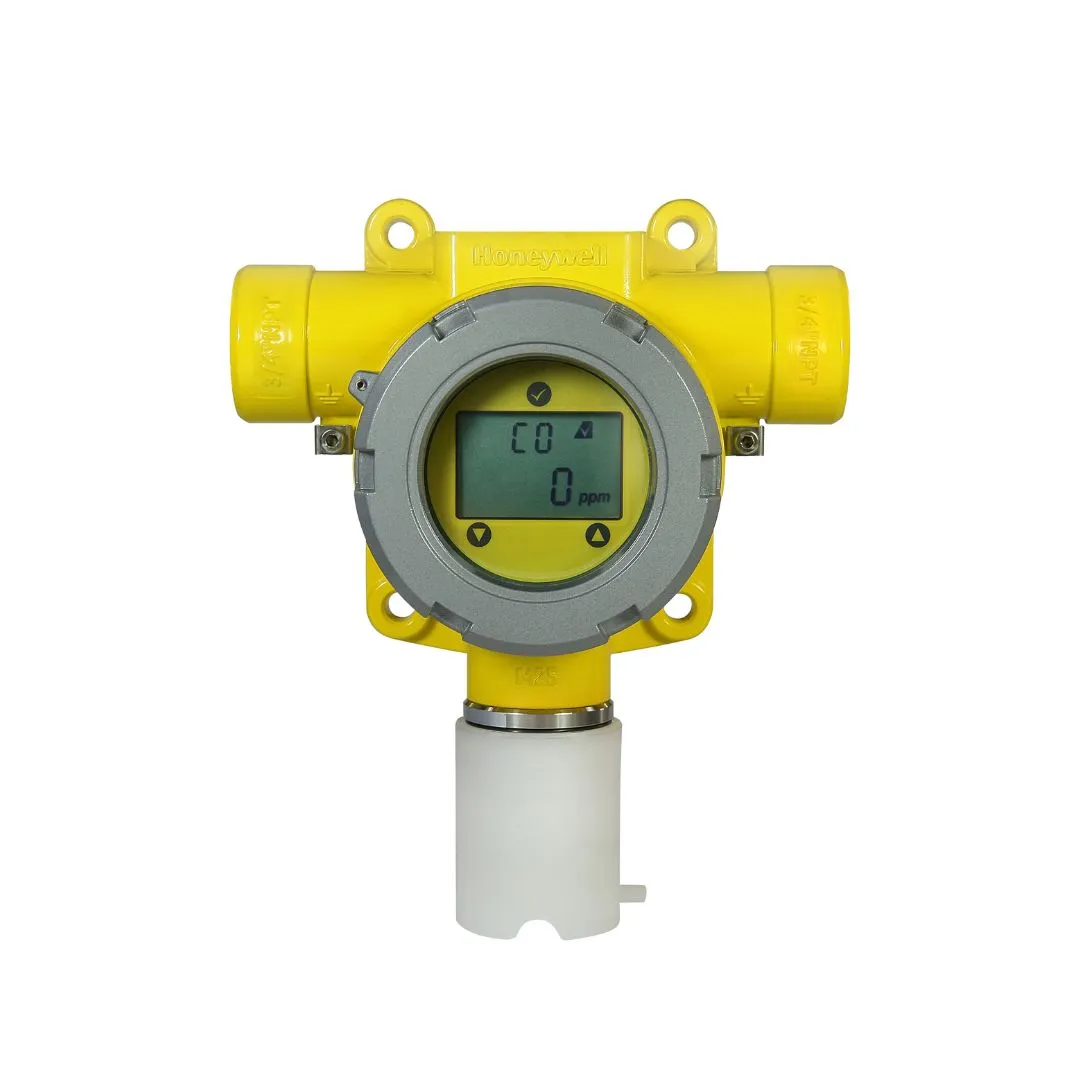

Honeywell Series 3000 MkII & MkIII Transmitters with Sensor – Intrinsically Safe Transmitters
The Series 3000 transmitters provide comprehensive monitoring for toxic gas and oxygen hazards in potentially explosive atmospheres. Suitable for both indoor and outdoor installations, they are available in two versions offering exceptional versatility. The MkII model is housed in a flameproof enclosure with an intrinsically safe sensor connection, ideal for use in Zone 1 applications. With the optional remote mounting kit, the MkII sensor can also be installed in Zone 0 environments.
Features and Advantages of Honeywell Series 3000 MkII & MkIII Transmitters
- Reliable detection using Surecell™ electrochemical cells designed for hot and humid environments.
- Durable sensing elements for long-term performance.
- Patented Reflex® sensor diagnostics for self-verification.
- Reduced installation costs with optional horizontal or vertical pipe mounting brackets.
- Compatible with Series 2000 mounting configurations.
- Reduced commissioning costs through automatic sensor recognition and configuration.
- Non-intrusive configuration for enhanced safety and convenience.
- Menu and icon-based calibration procedures for user-friendly operation.
Specifications – Series 3000 MkII and MkIII Transmitters with Sensor
- Rugged and reliable gas detector designed to protect personnel from toxic gas and oxygen hazards. The MkII version is suitable for hazardous areas classified as Zone 1, 2, 21, or 22 and North American Class I and II, Division 1 or 2. The MkIII version is approved for use in Zone 0, 1, 2, 20, 21, or 22.
- Dimensions: 164mm x 201mm x 99mm.
- Weight: Aluminium LM25 alloy – 1.7kg; Stainless steel 316 – 3.7kg.
- IP rating: IP66 (EN 60529), NEMA 4X.
- Storage temperature: 15°C to 30°C (59°F to 86°F), 30–70% RH (non-condensing).
