Sensepoint XCD RFD

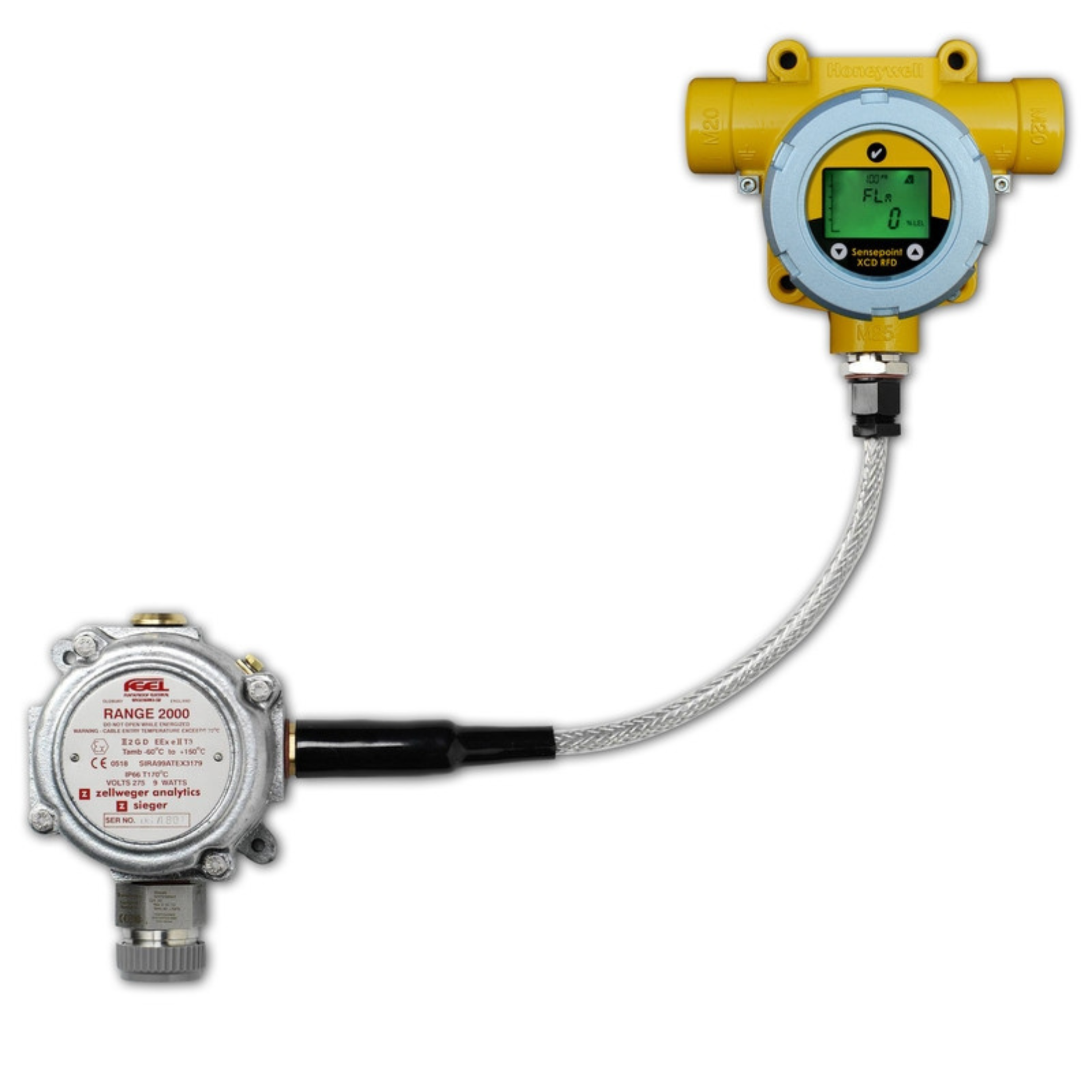

The Sensepoint XCD RFD (Remote Flammable Detector) is specifically designed for use with remotely mounted flammable gas sensors. This configuration is ideal for applications where sensors must be positioned away from the transmitter, such as areas with temperatures far above ambient levels (up to 150°C/302°F) or locations that are difficult to access. The transmitter can be installed in a more convenient area where it is easy to view and interact with via its user interface.
Features and Advantages of XCD RFD
- The sensor can be mounted up to 30 metres from the transmitter.
- Compliant with HSE guideline requirements.
- Easy-to-read three-colour backlit display with digits, bar graphs, and icons.
- Auto-inhibit function during maintenance prevents false alarms.
- Designed for use in potentially explosive atmospheres. Installation must follow national guidelines using appropriate mechanically protected cabling and glands (M20 and M25). Use 0.5mm² to 2.5mm² cross-section cables as required to ensure minimum operating voltage at the detector, depending on the installed cable length.
Specifications of Honeywell Sensepoint XCD RFD
- Input voltage range: 16 to 32 VDC (24 VDC nominal)
- Communication: RS485, MODBUS RTU
- Mounting: Pole or wall
- Gas Detector Type: Flammable gas detection
